Electric
Output Signal	SPDT Output
Electrical Construction	NO/NC NO NC

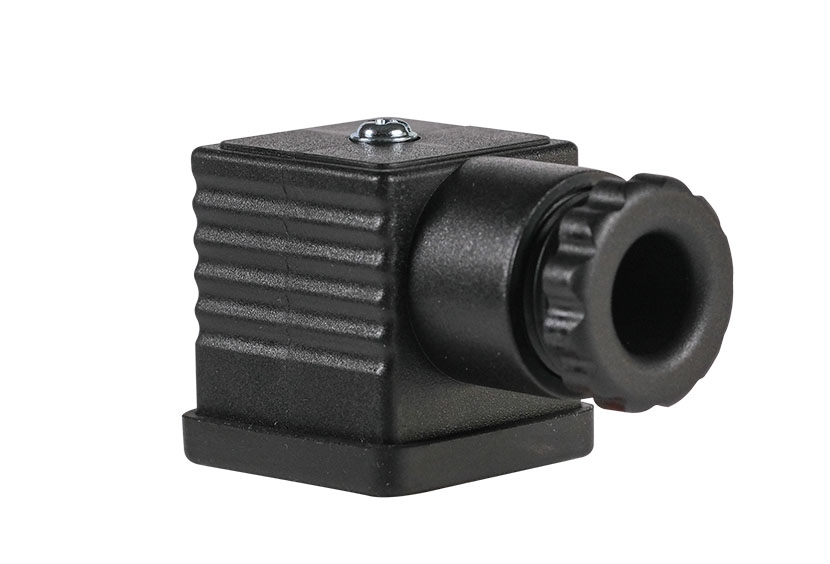

Electrical Connector Type	DIN 43650-A DIN 43650-C FAST-ON TERMINAL
Max. Signal Pressure	125 VAC
Current	Max. VAC: 3A
Connection Principle	2 Wire 3 Wire
Min. Signal Pressure	0,2 bar 2,9 psi 20 kPA 0,02 Mpa

Pressure
Min. Signal Pressure	0,2 bar 2,9 psi 20 kPA 0,02 Mpa
Max. Signal Pressure	40-750 bar 580-8700 psi 4000-60000 kPa 4-60 Mpa
Pressure Indicator	No

Temperature
Min. Temperature	-20 °C 20°F
Max. Temperature	+100 °C 212 °F

Materiel
Mechanical Connection	G1/2"-G1/4”- G1/8” 1/4”BSPT - 1/8”BSPT M10x1,0 - M12x1,5 1/8”NPT - 1/4”NPT
Body	Zinc Plated Steel Body Brass Body (MS58) Stainless Body (316L)
Sealing Element	NBR
