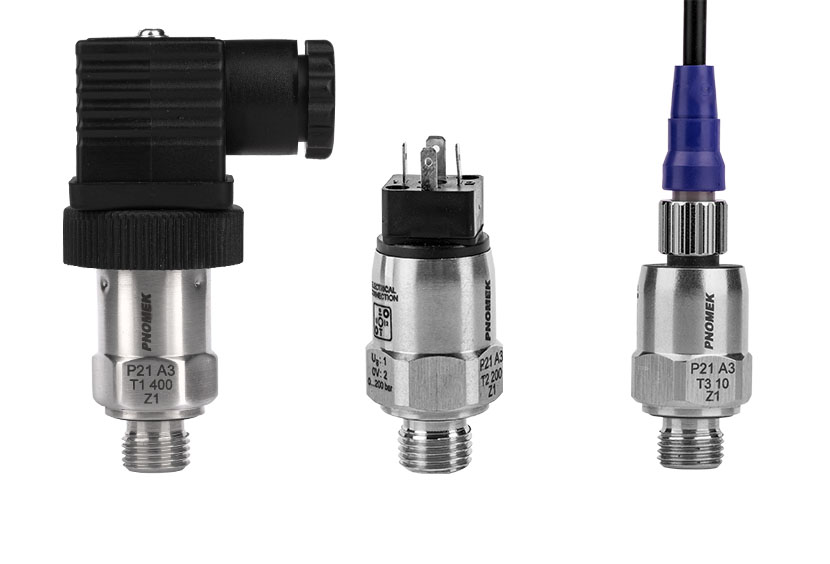

P21 Series Pressure Transmitter

P21 Series Pressure Transmitter

They have excellent long-term stability thanks to the piezoresistive ceramic measuring cell.
Stainless body and ultra-compact design.
Perfect measurement from 0 bar to 400 bar.
It can be adjusted according to customer specifications.
Twice the vibration resistant of normal industrial standards.

Electric
Output Signal	Analog
Electrical Construction	4…20 mA 0…10 V
Electrical Connector Type	DIN 43650-A DIN 43650-C M12 x 1 (4 pin)
Max. Supply Voltage	30 VDC
Min. Supply Voltage	8 VDC-14 VDC
Connection Principle	2 Wire 3 Wire

Pressure
Type of Pressure	Relative Pressure Vacuum
Min. Signal Pressure	-0,85 bar
Max. Signal Pressure	600 bar 8700 psi 60000 kPa 60 Mpa

Technical Document

P21 Pressure Transmiter - Technical Document (EN)
